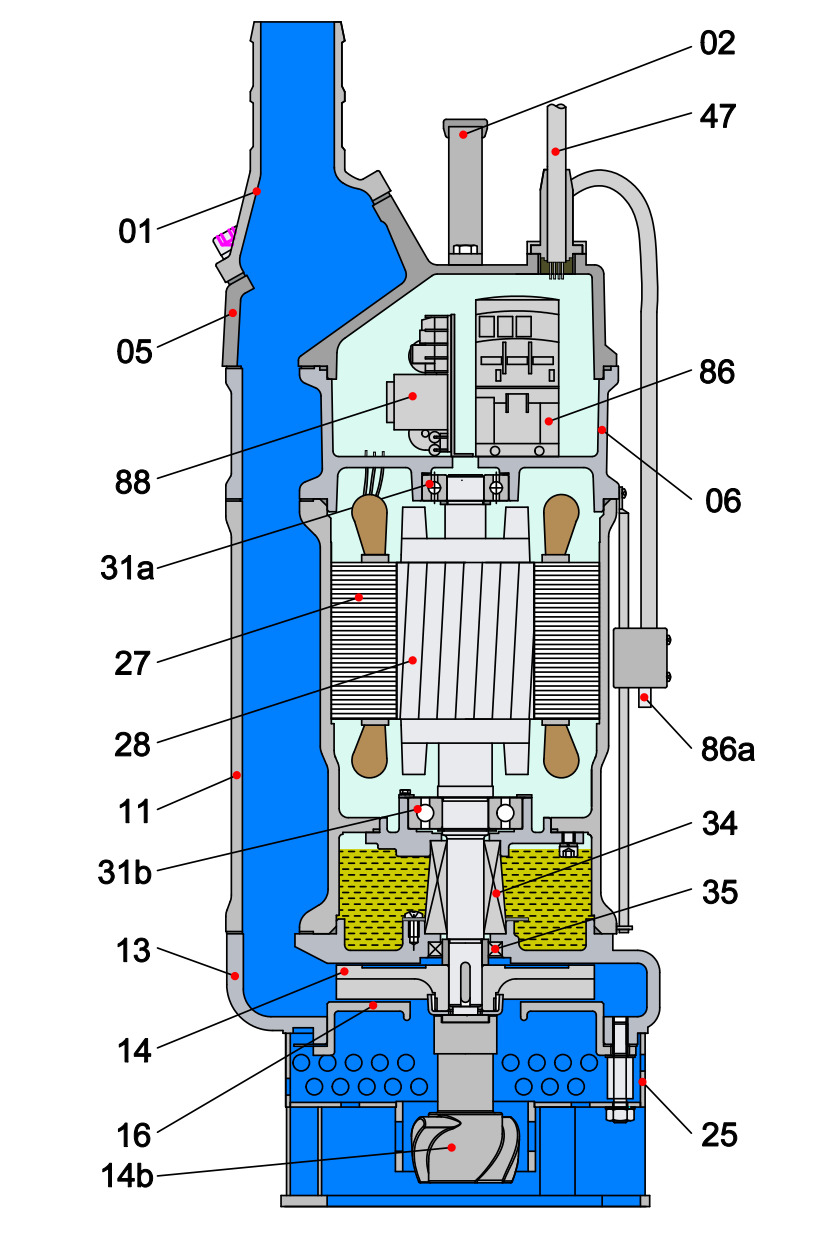

Structure and characteristics

The Agitator Pump KBDE Series is a cast iron made, heavy-duty slurry pump employinig the KBZ Series as the base.

An agitator is provided to assist smooth suction of the pumping fluid.

The side-flow, top-discharge design keeps the motor cooling even if the pump is operated continuously with its motor exposed in air, and it makes the pump easier to be placed in a confined space.

This pump is suitable for transferring or draining bentonite slurry used for slurry drilling, draining slurry mixed water in civil engineering works or foundation works.

The pump can operate automatically with built-in intelligent control system, thus achieve low total energy costs.

Main advantages

Protect against reverse phase, ensuring correct impeller rotation

Protect against open phase or impeller jam, thus prevent accidental damage

Automatically stop the pump in event of overload or abnormal voltage and recover in 5 min

The pump stops working at high temperature, and restarts automatically after cooling to a specified temperature

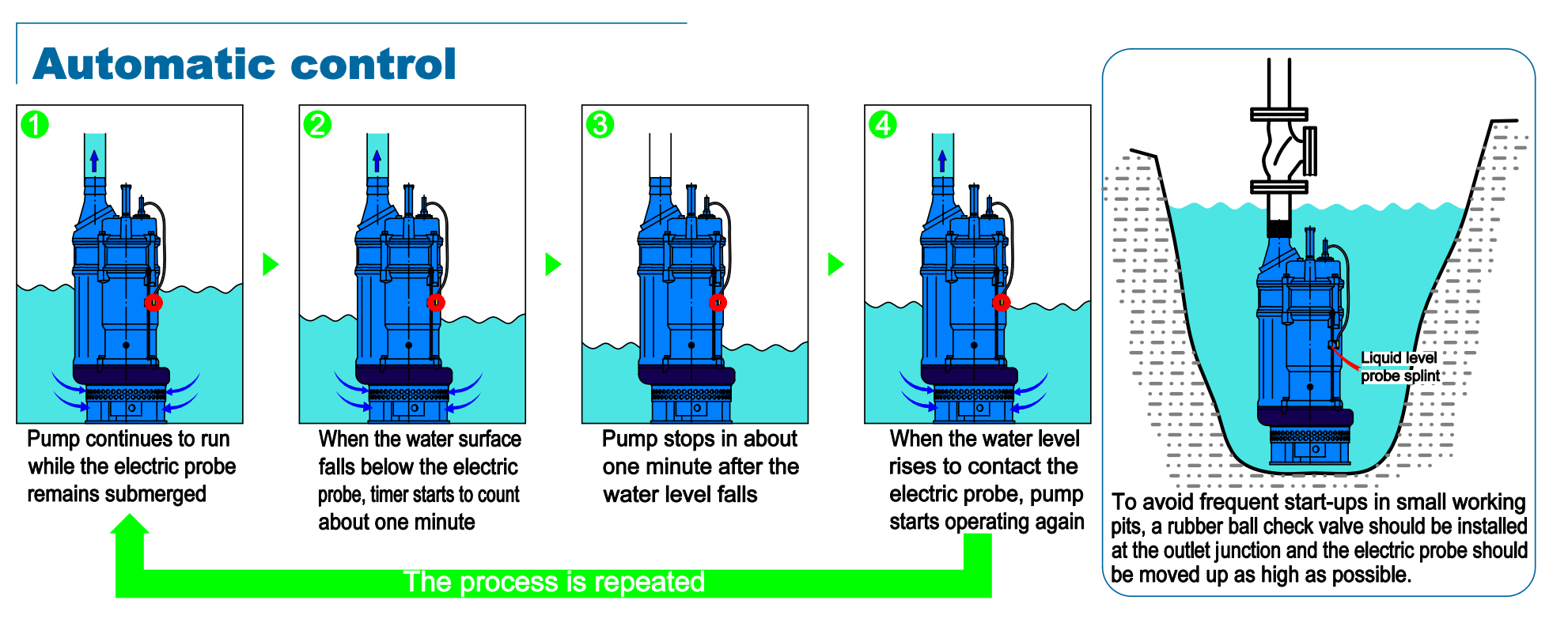

The height of the electric probe is adjustable to control pump operation

The pump stops working within 60s after water level reaches below the probe. When the water level rises to reach the electric probe, pump starts operating again

Rapid assessment on pump operation and malfunction diagnosis

Application

Civil engineering

Mines, quarries, coal mine & slurries

Sewage treatment plants

General pumping purposes

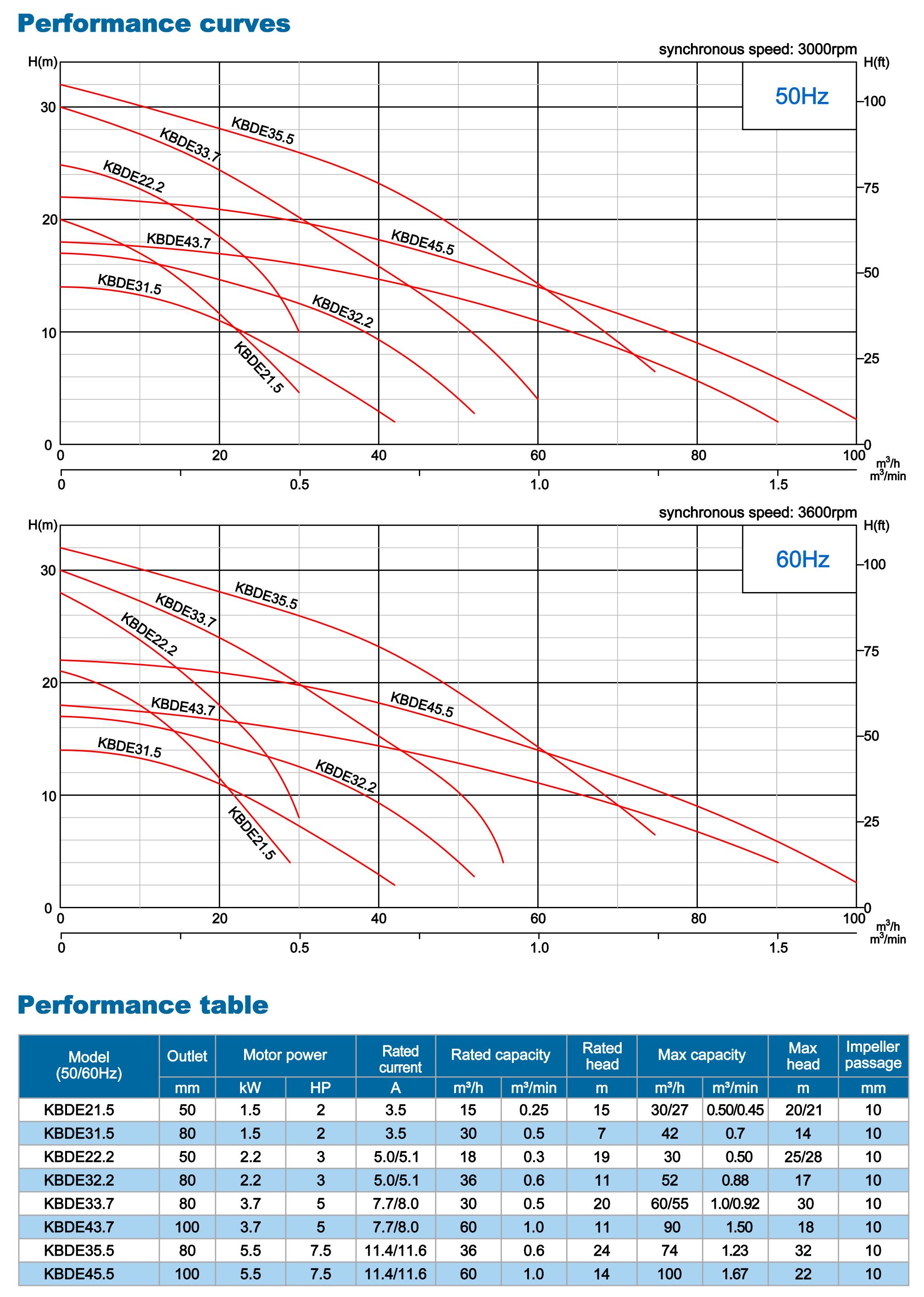

Specification

Capacity: up to 100 m³/h

Head: up to 32 meters

Power: 1.5kW (2HP) to 5.5kW (7.5HP)

Power supply: Three phase 400V ± 10%, 50Hz

                                             380V ± 10%, 60Hz

Insulation class: F

Protection class: IP68

Cable length: 8m

Water temperature: up to 40℃

Max.water depth:  25m
